Design focused on the user

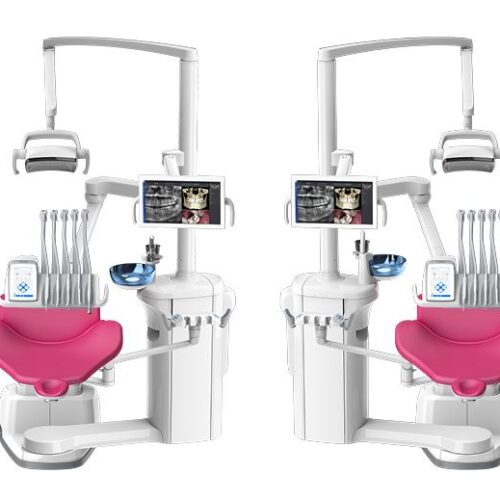

The high-quality Planmeca Pro50 dental unit is the result of continuous evolution – a dental unit like no other.  

The premium-level unit is designed to showcase the next level of dental units – the ones that come with cutting-edge technology, ergonomics, quality and infection control.

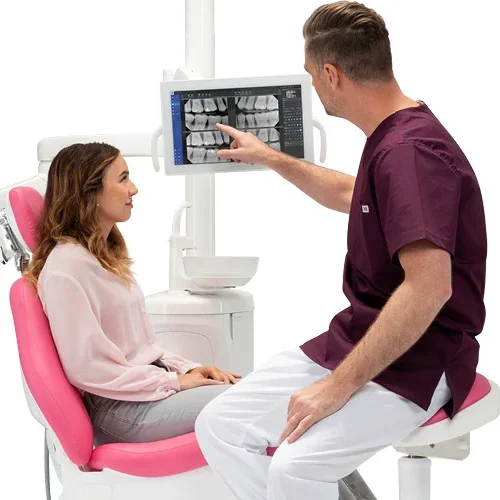

Feel the Intelligence

Planmeca Halo interactive touch screen brings together all the elements of a daily clinical workflow – from accessing patient data to dental unit management.  The screen can be accessed conveniently by the assistant, doctor and patient..

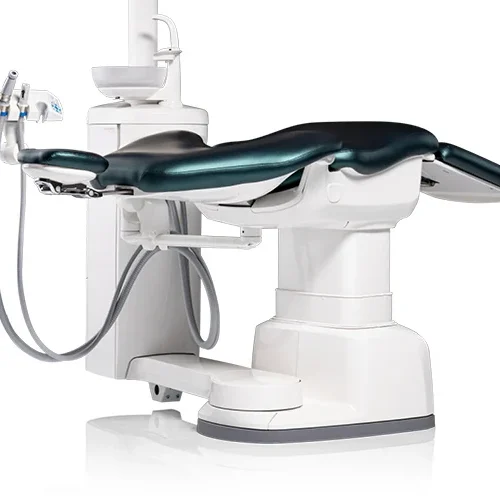

Feel the elegance

Finnish design at its best – compact, elegant, light, silent, comfortable, sturdy, adaptable, and durable. On top of premium materials, that make the unit last time, it takes only a small amount of space. The inviting looks and slender design create trust and make the patient feel more relaxed.

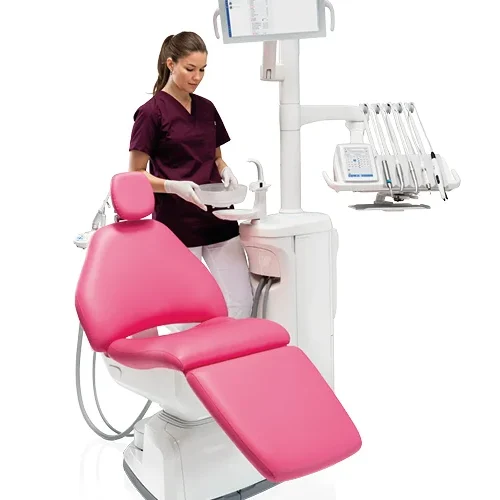

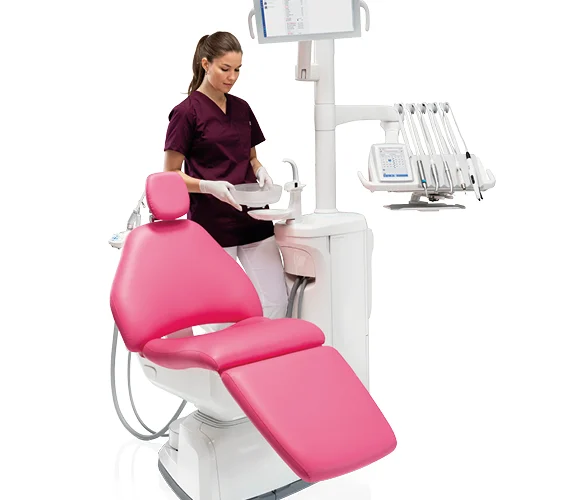

Feel the cleanliness

All infection control functions are elegantly integrated into the unit to guarantee a straightforward workflow.  The unit consists of smooth aluminium surfaces, which tolerate cleaning solutions well. The state-of-the-art design of the unit, including quality upholstery with a minimum number of seams, makes the cleaning easy and ensures impeccable external infection control. Cleaning procedures are guided step by step in the unit’s screens.

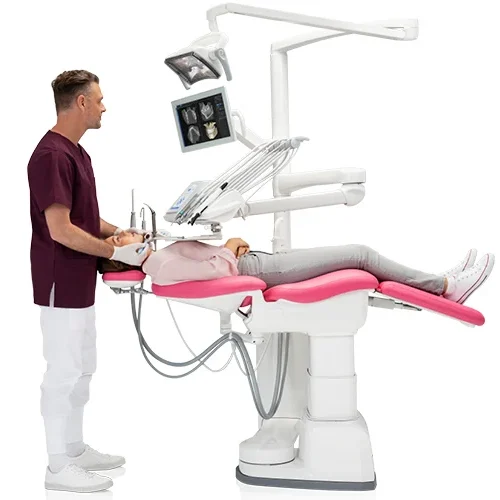

Feel the ergonomics

The unit allows the working position to be as close to the patient’s head as possible – both sitting and standing.  Balanced instrument arms carry the weight of the instruments and require only small movements to use them. The compact instrument console is light to move and can be placed right next to the working area.

On top of that, the unit can be switched from right- to left-hand use quickly with identical working experience.

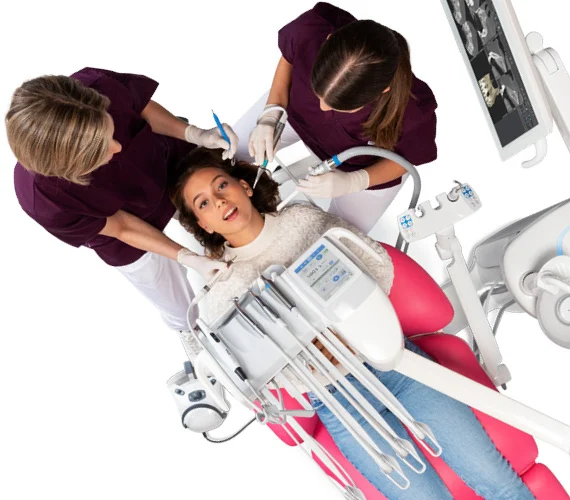

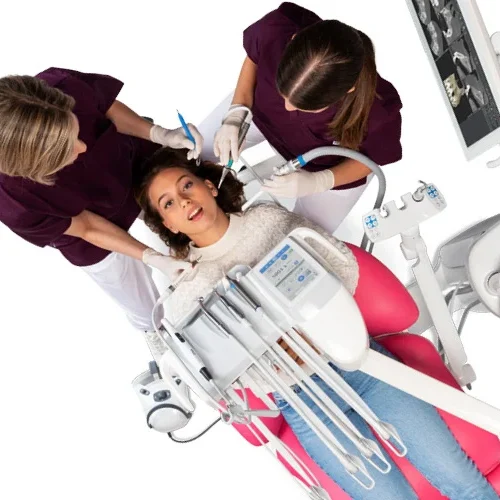

Feel the flow

From easily moveable arms to infection control guides to multi-usage monitors – Pro50 is designed with user friendliness in mind. Screens that show patient data, such as x-ray images and intraoral pictures, ensure an ideal workflow. Individual adaptability of the unit makes the workflow ergonomic and easy.

Delivery systems
– Over-the-patient delivery arm with balanced instruments
– Over-the-patient delivery arm with hanging tube instruments
– Side delivery with hanging tube instruments
– Cart delivery with hanging tube instruments
– Independent cart with hanging tube instruments
Power requirements 100 VAC, 115 VAC. 220–240VAC
Mains frequency 50/60 Hz
Water inlet pressure 300-900 kPa (43–130 psi)
Air inlet pressure 550-900 kPa (80-130 psi)
Weight 160 kg (353 lbs)
Mounting To be fixed to the floor
Frame Cast aluminium alloy
Colour White (RAL 9016), view upholstery options
