Cattani Micro Smart

Micro Smart Suction System

The Micro Smart is equipped with three preset vacuum settings: 70, 100, and 210 millibar, allowing it to adapt to varying surgical requirements. These settings can be modified if necessary. You can simply press the chosen preset button on the control panel to adjust the vacuum level based on the specific procedure being conducted. Additionally, the system offers remote control capabilities through a Wi-Fi connection.

Add to quote

Micro Smart Suction pump

Cattani provides us with a progressive suction system, self-adaptive to the working flow, as it increases or decreases the speed and suction power at any given moment according to the suction needs.

  • 3 Year Warranty*
  • Extended 2 Year Warranty Available*
  • Single Surgery
  • Smart system
  • SmartApp
  • Suction Systems
  • TUV Certified
  • WIFI Connection
micro smart cattani

Micro Smart is a versatile, reliable, and powerful suction system designed for single surgeries, making it suitable for a wide range of dental procedures.
It features variable speed, which helps reduce power consumption and heat generation.

The unit comes pre-wired, pre-programmed, and fully assembled, offering added benefits that minimize maintenance time.

Professionals can connect to this unit using the free Cattani SmartApp, which allows them to monitor the unit’s status, alarms, and servicing or maintenance needs*.

The digital display provides information on the amalgam container level, operating temperature, and hours of operation to ensure accurate servicing.

Micro Smart offers three programmable vacuum levels:

  • LOW VOLUME for Orthodontics and Saliva ejectors.
  • MEDIUM VOLUME for Conservative treatments.
  • HIGH VOLUME for Oral surgery and Implantology.


Each Micro Smart suction system includes a care kit; more details can be found in our Catalogue.

It is TUV certified for 98.9% amalgam retention.

An optional sound-reducing cover can be purchased, lowering noise levels from 64-71 dB(A) to 63-68.5 dB(A).

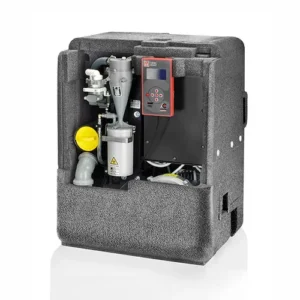

Additionally, Micro Smart can be acquired with a sound-reducing cabinet that minimizes noise levels to 41-48 dB(A).

The system comes with a 3-year warranty. An additional 2-year warranty is also available for purchase, extending the warranty from 3 to 5 years.

For more information on this product and its accessories, please refer to our Catalogue.

The maximum performance is 900L/min at 210mbar. Connecting to the SmartApp is necessary for the unit’s warranty. Warranties are subject to the Terms and Conditions of the servicing schedule, and the additional 2-year warranty must be purchased at the time of the sale.

Product Code: 035060
No. of Surgeries: 1
Output Power: 1.12kW – 8A 230v 50Hz
Noise Level: 64 – 71
Max. Flow: 900
Max. Vacuum Level: 210 (continuous service)
TUV Certified: 98.9% amalgam retention
Operating Temp.: +5°C – +35°C
Size: W370 D340 H 590 (mm)
Weight: 23 KG

Additional information

Model

Micro, Smart, Cube
