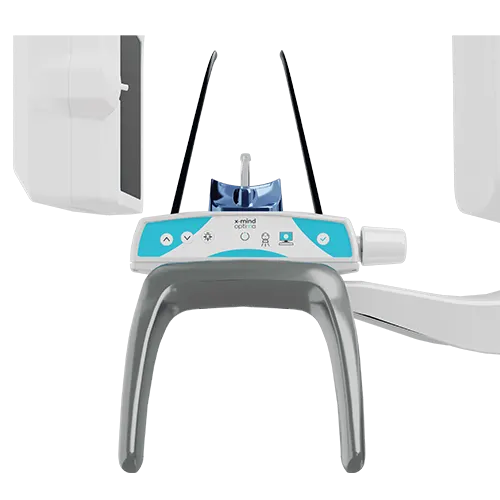

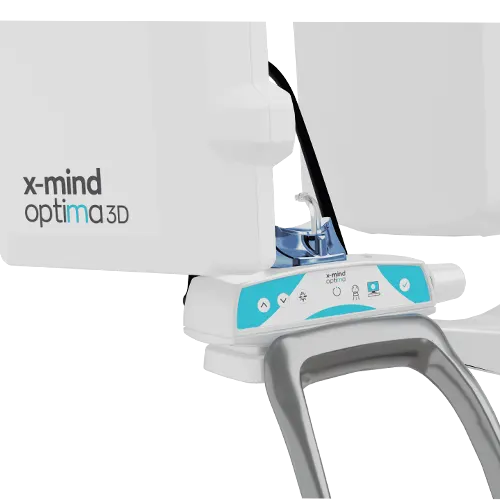

Acteon X-MIND® optima 3D
X-MIND® optima 3D: The Pinnacle of Compact, AI-Enhanced Dental Imaging Solutions
The X-MIND® optima 3D is a groundbreaking compact CBCT system designed for seamless integration in dental practices. Its advanced AI features and state-of-the-art imaging technology deliver exceptional diagnostic clarity and support, enhancing workflow and patient care.
Exceptionally Space-Saving
X-MIND® Optima 3D represents ACTEON’s commitment to innovative, user-friendly solutions. Its compact, ‘zero-footprint’ design easily fits into any dental practice, maximizing space and enhancing accessibility.
Exceptional clarity
The X-MIND® optima 3D features advanced detector technology, combined with an extended kV range of up to 90 kV, which guarantees outstanding diagnostic quality, even in the most challenging clinical scenarios.
Enabled by AI
X-MIND® Optima 3D seamlessly integrates cutting-edge hardware technology with the next-generation software, RealGUIDE™ 5.4, incorporating the advantages of Artificial Intelligence into every aspect of patient care.
The most compact CBCT available
X-MIND®’s Optima 3D design allows for seamless integration into nearly any dental practice. It reduces space limitations while enhancing patient comfort and accessibility.
The most extensive offer
The X-MIND® optima 3D is well-suited for a variety of dental procedures, ranging from general dentistry to orthodontics and maxillofacial surgery, thanks to its extensive range of Fields of View (FOV) options, which span from 5×5 cm to 17×12 cm (Ø x H).
AI for life
Built on the Acteon® Imaging Suite 5.4 and enhanced by exceptional AI-driven features within RealGUIDE™ 5.4, this solution provides unmatched support throughout the entire implant and restorative workflow, enabling you to dedicate more attention to patient care.
Anytime at your side
ACTEON offers a wide array of exclusive services designed to support you as both a professional and a customer.
| Category | XMO | XMO 3D STANDING | XMO 3D – CEPH OPTION |
|---|---|---|---|
| X-RAY Sources | |||
| Total Filtration | ≥ 2.5 mm Al eq. @ 90kVp | ≥ 2.5 mm Al eq. @ 90kVp | ≥ 2.5 mm Al eq. @ 90kVp |
| Tube Voltage | 60-90 kV | 60-90 kV | 60-90 kV |
| Anodic Current | 2-12.5 mA | 2-12.5 mA | 2-12.5 mA |
| Focal Spot | 0.5 | 0.5 | 0.5 |
| Detectors | |||
| Type | IGZO Flat Panel | IGZO Flat Panel | CMOS detector with CsI scintillator |
| Pixel Size | 110 µm | 110 µm | 99 µm |
| Voxel Size | 70 µm – Endo mode 160 µm – Standard mode |
70 µm – Endo mode 160 µm – Standard mode |
– |
| Gray Levels | 65536 (16 bit) | 65536 (16 bit) | 16384 (14 bit) |
| Sensitive Area (H x L) | 169.3 x 169.3 mm | 169.3 x 169.3 mm | 228 x 6.7 mm |
| Mechanical Data | |||
| Footprint | 1107 x 1063 mm | 1204 x 1063 mm | 1204 x 1859 mm |
| Height | 2188 mm (max) | 2230 mm (max) | 2230 mm (max) |
| Weight | 69 kg | 89 kg | 126 kg |
| Focal Spot to Image Receptor Distance | 500 mm (20″) | 500 mm (20″) | 1650 mm (65″) |
