Acteon PSPIX 2 Phosphor plate scanner
PSPIX 2 – the next generation phosphor plate scanner.

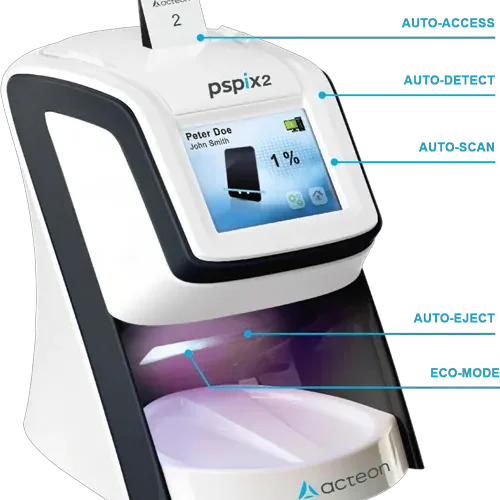

The PSPIX 2 operates autonomously
Liberate yourself and concentrate fully on your patients with the fully automated PSPIX 2 process.
Simply place the plate into the slot, and the PSPIX 2 will automatically identify the size, scan the plate, enhance the image, and seamlessly transmit it to your imaging software in real-time.
The PSPIX 2 is remarkably efficient
Achieve a precise clinical diagnosis with a high-quality X-ray that offers clear visualization and straightforward interpretation of various dental tissues.
Slim and adaptable imaging plates
The PSPIX 2 offers remarkable adaptability

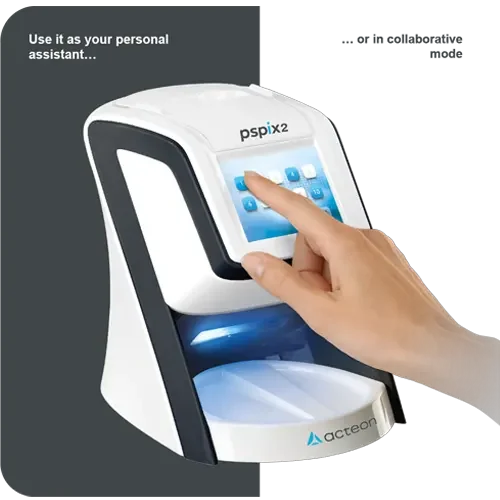

Enhance your productivity by utilizing the PSPIX® 2 as your personal assistant or in collaborative mode.
| Specification | Details |
|---|---|
| PRODUCT DATA | |
| General Features | |
| Theoretical resolution | 20 lp/mm |
| Grey levels | 16 bit |
| Pixel size | 25 µm |
| Scan time (fast mode) | 1.6s – 2.7s |
| Scan time (high definition mode) | 2.1s – 3.6s |
| Image display time | 12 s (size 2) |
| PSP plate return time | 10 s (size 2) |
| Plate processing | Automatic process of plate size identification, reading and clearing |
| Sensitivity adjustment | Automatic setup of sensitivity on the required dose level |

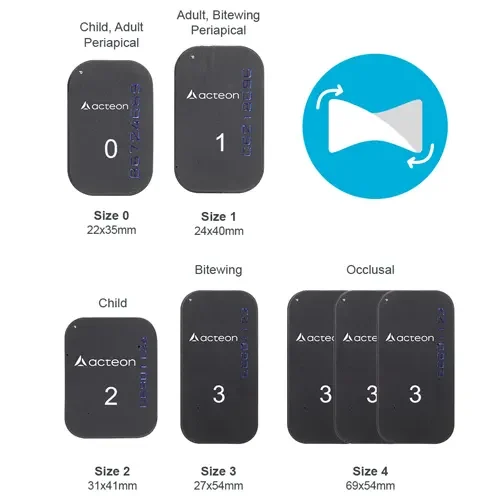

| Plate sizes | Size 0 (22×35 mm – 880×1400 pixel) Size 1 (24×40 mm – 960×1600 pixel) Size 2 (31×41 mm – 1240×1640 pixel) Size 3 (27×54 mm – 840×2160 pixel) Size 4C (48×54 mm – 1920×2160 pixel) Size 4 (69×54 mm – 2760×2160 pixel) |
| Connection | RJ45 – Ethernet |
| Mechanical Features | |
| Dimensions | 154 x 204 x 193 mm (W x D x H) |
| Weight | 2.6 kg |
| Electrical Features | |
| External power adapter | |
| Power supply voltage | IN: 110 / 240, 50-60 Hz Vac OUT: 12 Vdc |
| Adsorbed power | 24 W |
| Absorbed current | 2.5 A |
